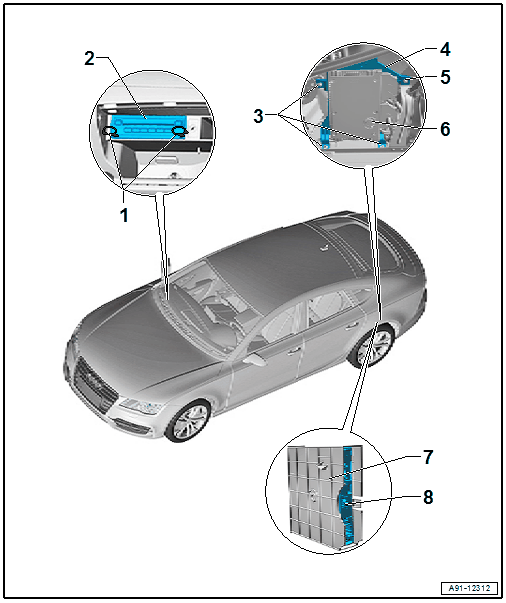

Component Location Overview - TV System, From My 2015

Courtesy of AUDI OF AMERICA, LLC

1. Radio Removal Tool :T10057
2. DVD Changer -R161-
   • Connector assignment DVD Changer -R161- CONNECTOR ASSIGNMENT, FROM MY 2015 .
   • Removing and installing. Refer to DVD CHANGER, REMOVING AND INSTALLING .
3. Screw
   • Top: 5 Nm
   • Bottom: 4 Nm
   • Quantity: 3
4. Bracket
5. Screw
   • 5 Nm
6. Digital Sound System Control Module -J525-
7. Bracket
8. TV Tuner -R78-
   • Connector assignment DIGITAL TV Tuner -R78- CONNECTOR ASSIGNMENT .
   • Removing and installing. Refer to TV Tuner -R78-, REMOVING AND INSTALLING, FROM MY 2015 .
