Effects Speaker, Removing And Installing: Removing

-- Turn off the ignition and all electrical consumers and remove the ignition key.

-- Remove the D-pillar trim panel. Refer to D-PILLAR TRIM PANEL, REMOVING AND INSTALLING .

-- Release and disconnect the connector from the Left Effects Speaker -R209-.

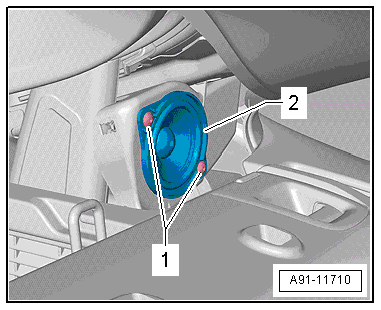

-- Remove the screws -1- from the Left Effects Speaker -R209- - 2-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the Left Effects Speaker -R209- -2- from the D-pillar.
