Component Location Overview - Sound System, Sound Amplifier, Microphones, BOSE, Through My 2014

Courtesy of AUDI OF AMERICA, LLC

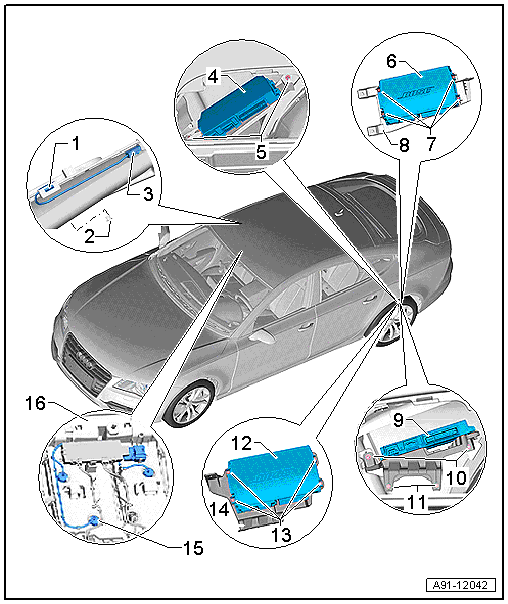

1. ANC Microphone with Retaining Plate
   • Quantity: 4
   • Overview. Refer to COMPONENT LOCATION OVERVIEW - ANC MICROPHONES .
2. Trim
   • Quantity: 4
3. Wiring Harness Coupling
   • Quantity: 4
   • Overview. Refer to COMPONENT LOCATION OVERVIEW - ANC MICROPHONES .
4. Digital Sound System Control Module -J525-
   • Connector Assignment. Refer to Digital Sound System Control Module - J525-, BOSE, THROUGH MY 2014 .
   • RMC, Removing and Installing. Refer to Digital Sound System Control Module -J525-, REMOVING AND INSTALLING, BOSE, RMC, THROUGH MY 2014 .
5. Nut
   • 4 Nm
   • Quantity: 3
6. Digital Sound System Control Module -J525-
7. Bolt
   • 6 Nm
   • Quantity: 4
8. Bracket
9. Digital Sound System Control Module -J525-
   • MMI, Removing and Installing. Refer to Digital Sound System Control Module -J525-, REMOVING AND INSTALLING, BOSE, MMI, THROUGH MY 2014 .
10. Nut
    • 4 Nm
    • Quantity: 2
11. Screw
    • 4 Nm
    • Quantity: 2
12. Digital Sound System Control Module -J525-
13. Bolt
    • 6 Nm
    • Quantity: 4
14. Bracket
15. Interior Microphone -R74-
    • Overview. Refer to OVERVIEW - MICROPHONE UNIT .
16. Front Interior Lamp -W1-
    • With Microphone Unit in Front Roof Module -R164-
    • Removing and installing. Refer to CONTROLS . .
