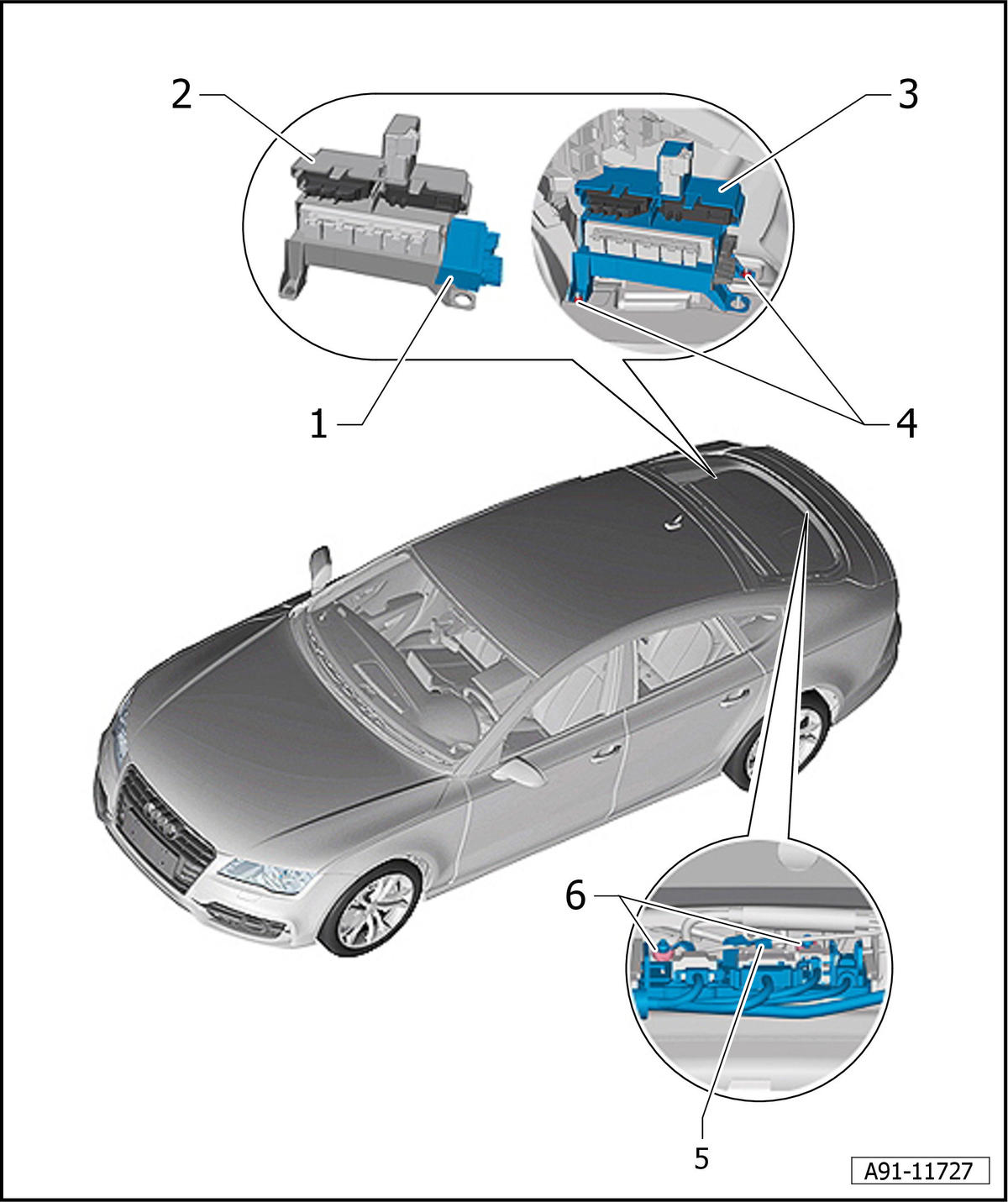

Component Location Overview - Rearview Camera System

Courtesy of AUDI OF AMERICA, LLC

1. Rearview Camera System Control Module -J772-, through MY 2016
   • Connector Assignment. Refer to the Appropriate Wiring Diagram.
   • Removing and Installing. Refer to Rearview Camera System Control Module -J772-, REMOVING AND INSTALLING .
   • Calibrating. Refer to REARVIEW CAMERA SYSTEM, CALIBRATING .
2. Rack
3. Rack
4. Nut
   • 3 Nm
   • Quantity: 2
5. Rearview Camera -R189-, in the Handle Button
   • With Rearview Camera System Control Module -J772-, from MY 2017
   • Removing and Installing. Refer to Rearview Camera -R189-, REMOVING AND INSTALLING .
   • Calibrating. Refer to REARVIEW CAMERA SYSTEM, CALIBRATING .
6. Nut
   • 6 Nm
   • Quantity: 2
