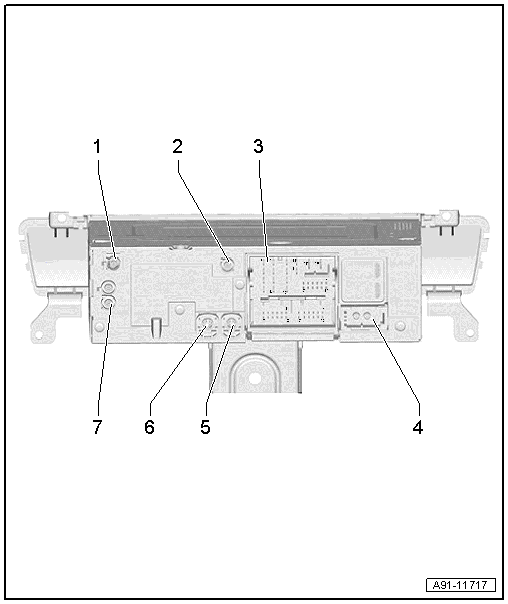

Radio -R- CONNECTOR ASSIGNMENT, RMC PLUS AND 8DP

Courtesy of AUDI OF AMERICA, LLC

1. DAB Connection from Antenna Amplifier 3 -R112-, Digital Radio Antenna -R183-, only Europe/Rest of World and QV3

   - SAT connection from Roof Antenna -R216-, Satellite Antenna -R170-, only USA and QV8

2. Not Assigned
3. Connection Block With Four Multi-Pin Connectors
4. MOST Bus
5. 4-Pin Connector -T4z- to the External Audio Source Connection -R199-
6. 4-Pin Connector -T4df- to the Front Information Display Control Head -J685-
7. AM/FM/FM2 Antenna Connection

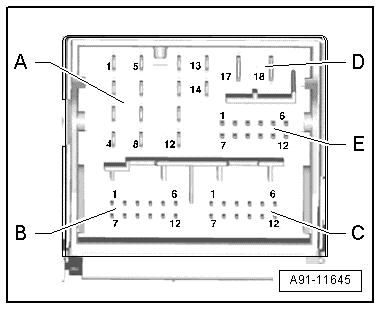

3 - Connection Block With Four Multi-Pin Connectors

Courtesy of AUDI OF AMERICA, LLC

1. Right Rear Speaker (+)
2. Right Front Speaker (+)
3. Left Front Speaker (+)
4. Left Rear Speaker (+)
5. Right Rear Speaker (-)
6. Right Front Speaker (-)
7. Left Front Speaker (-)
8. Left Rear Speaker (-)

Courtesy of AUDI OF AMERICA, LLC

1 - Data from Multimedia System Control Head -E380-

2 - Res BT Multimedia System Control Head -E380-

4 - Microphone input (+) from Microphone Unit in Front Roof Module -R164-, Left Front Microphone -R140-

7 - Data to the Multimedia System Control Head -E380-

8 - Wake UP Multimedia System Control Head -E380-

9 - Res HU to the Multimedia System Control Head -E380-

12 - Microphone input (-) from Microphone Unit in Front Roof Module -R164-, Left Front Microphone -R140-

Courtesy of AUDI OF AMERICA, LLC

All pins are connected to the External Audio Source Connection -R199-.

1. LF-In ground
2. Right LF-In
3. USB, +5 V
4. USB, ground
5. iPod®, ACC Power
6. Detect
7. Left LF-In
8. LF-In ground shielding
9. CVBS Cable (+)
10. CVBS Cable (-)
11. iPod® data
12. iPod® data

Courtesy of AUDI OF AMERICA, LLC

9 - Subwoofer -R211-

10 - Center Speaker -R208-

13 - Subwoofer -R211-

14 - Center Speaker -R208-

17 - Terminal 31

18 - Terminal 30

Courtesy of AUDI OF AMERICA, LLC

7 - Ring-Break Diagnostic Cable

Courtesy of AUDI OF AMERICA, LLC

1. Input
2. Output

Courtesy of AUDI OF AMERICA, LLC

All pins are connected to the External Audio Source Connection -R199-.

1. D (+)
2. iPod® recognized
3. D (-)
4. Ground

Courtesy of AUDI OF AMERICA, LLC

All pins are connected to the Front Information Display Control Head -J685-.

1. LVDS (-)
2. LIN
3. LVDS (+)
4. Ground

Courtesy of AUDI OF AMERICA, LLC

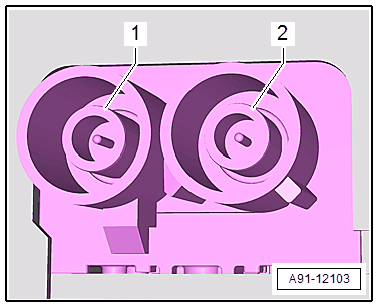

1. Chamber 2, AM/FM1 from Antenna Amplifier 2 -R111-, Radio Antenna 2 -R93-
2. Chamber 1, FM2 from Antenna Amplifier -R24-, Antenna -R11-
