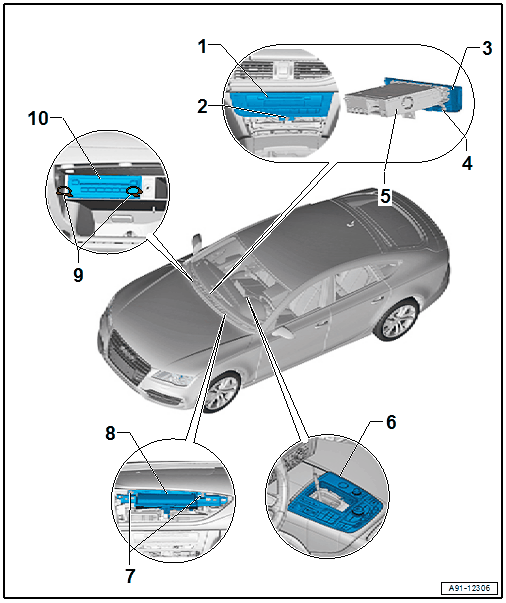

Component Location Overview - Radio, RMC, 8DN, 8DP

Courtesy of AUDI OF AMERICA, LLC

1. Information Electronics Control Module 1 -J794-
   • Radio Connector Assignment, RMC 8DN. Refer to Radio -R- CONNECTOR ASSIGNMENT, RMC AND 8DN .
   • Radio Connector Assignment, RMC Plus 8DP. Refer to Radio -R- CONNECTOR ASSIGNMENT, RMC PLUS AND 8DP .
   • Removing and Installing. Refer to Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING .
2. Screw
   • 3 Nm
3. Trim
4. Screw
   • 1 Nm
   • Quantity: 4
5. Information Electronics Control Module 1 -J794-
6. Multimedia System Control Head -E380-
   • Connector assignment Multimedia System Control Head -E380- CONNECTOR ASSIGNMENT .
   • Removing and installing. Refer to Multimedia System Control Head -E380-, REMOVING AND INSTALLING, QW1 .
7. Screw
   • 3 Nm
   • Quantity: 2
8. Front Information Display Control Head -J685-
   • Connector Assignment. Refer to Front Information Display Control Head -J685- CONNECTOR ASSIGNMENT .
   • Removing and Installing. Refer to INFOTAINMENT SYSTEM DISPLAY, REMOVING AND INSTALLING .
9. Radio Removal Tool :T10057
10. CD Changer -R41-
    • Connector assignment CD Changer -R41- CONNECTOR ASSIGNMENT .
    • Removing and installing. Refer to CD CHANGER, REMOVING AND INSTALLING .
