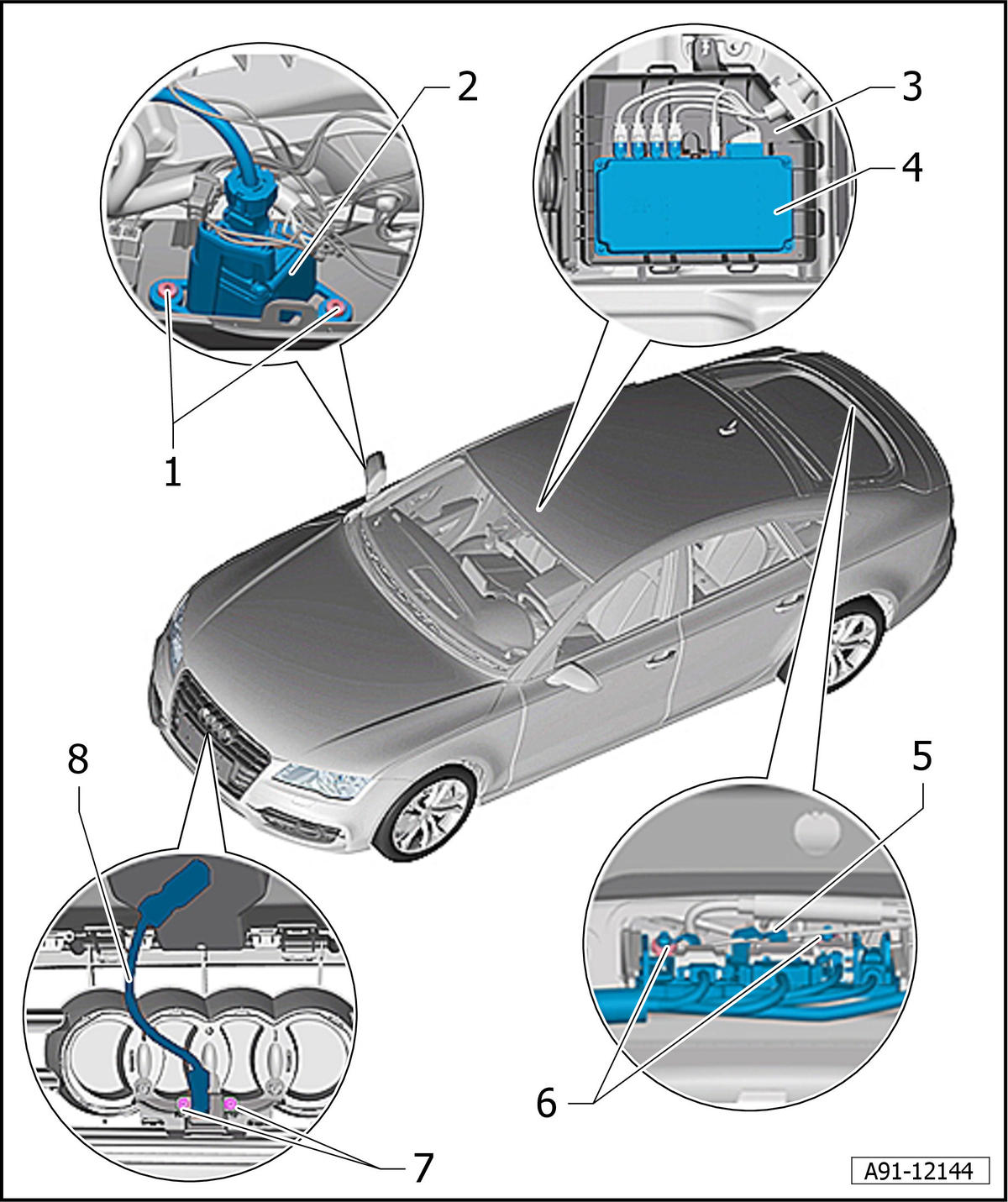

Component Location Overview - Peripheral Camera

Courtesy of AUDI OF AMERICA, LLC

1. Screw
   • 2 Nm
   • Quantity: 2
2. Right Peripheral Camera -R245- /Left Peripheral Camera -R244-
   • Depends on equipment
   • Calibrating. Refer to Left Peripheral Camera -R244- /Right Peripheral Camera -R245-, CALIBRATING .
3. E-Box
4. Peripheral Camera Control Module -J928-
   • Connector Assignment. Refer to the Appropriate Wiring Diagram.
   • Removing and Installing. Refer to Peripheral Camera Control Module -J928-, REMOVING AND INSTALLING .
   • Calibrating. Refer to PERIPHERAL CAMERA SYSTEM, CALIBRATING .
5. Rear Peripheral Camera -R246-
   • Removing and installing. Refer to Rear Peripheral Camera -R246-, REMOVING AND INSTALLING .
   • Calibrating. Refer to Rear Peripheral Camera -R246- CALIBRATING .
6. Nut
   • 3 Nm
   • Quantity: 2
7. Screw
   • 3 Nm
   • Quantity: 2
8. Front Peripheral Camera -R243-
   • Removing and installing. Refer to Front Peripheral Camera -R243-, REMOVING AND INSTALLING .
   • Calibrating. Refer to Front Peripheral Camera -R243- CALIBRATING .

No Illustration

• Bumper cover end plate screws: 3 Nm
