Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING: Removing

-- Remove any CDs still in the Information Electronics Control Module 1 -J794-.

-- Turn off the ignition and all electrical consumers and remove the ignition key.

-- Remove the Climatronic Control Module -J255-. Refer to Climatronic Control Module -J255-, REMOVING AND INSTALLING .

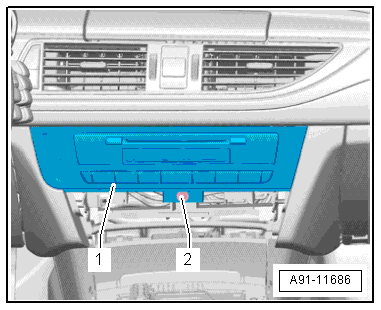

-- Remove the screw -2- on the Information Electronics Control Module 1 -J794- -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the Information Electronics Control Module 1 -J794- -1- from the mounting frame.

CAUTION:

Pay attention to the wire routing to the display in the instrument panel. It will not be possible to extend the display again if the wiring is routed incorrectly during installation.

-- Release and disconnect all connectors from the Information Electronics Control Module 1 -J794- and from the trim with switches.

-- Insert the :VAS6223/9 -1- onto the MOST bus connector -2-.

Courtesy of AUDI OF AMERICA, LLC

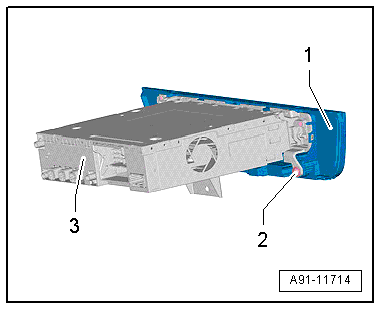

Next, the trim with the switches -1- must be removed from the Information Electronics Control Module 1 -J794- -3-.

Courtesy of AUDI OF AMERICA, LLC

Removing The Trim

-- Remove the four screws -2- and remove the trim with switches -1- from the Information Electronics Control Module 1 -J794- -3-.
