Rear Level Control System Sensors -G76- / -G77-

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2017 Audi S3, 2017 Audi A3 Quattro, 2017 Audi A3, 2016 Audi S3, and 2016 Audi A3 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

The level control system sensor is only available as a replacement part together with the connecting link and upper and lower mounting plates.

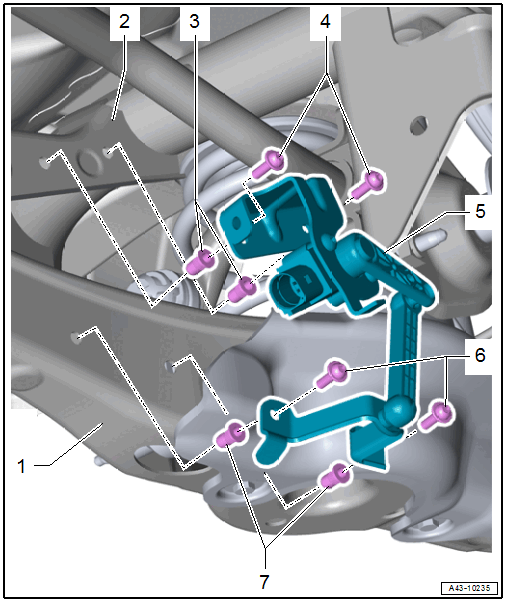

Fig 1: Exploded View Of Rear Level Control System Sensor

Courtesy of AUDI OF AMERICA, LLC

Lower Control Arm
Subframe
Internally Threaded Pop Rivets
Bolts
- 5 Nm
Rear Level Control System Sensor
- Complete with attachments
- The lever must face toward outside of vehicle
- Removing and Installing. Refer to REAR LEVEL CONTROL SYSTEM SENSOR -G76- / -G77-, REMOVING AND INSTALLING .
- If the Left Rear Level Control System Sensor -G76- or the Right Rear Level Control System Sensor -G77- is removed or reinstalled / replaced of the coupling rod of a level control system sensor is loosened:
  - "Re-adapt control position". Refer to Vehicle Diagnostic Tester.
  - On vehicles with lane assistance calibrate the driver assistance systems front camera. Refer to DRIVER ASSISTANCE SYSTEMS FRONT CAMERA, CALIBRATING .
  - Evaluate the need for a basic setting of the headlamps. Refer to HEADLAMP, ADJUSTING .
Bolts
- 5 Nm
Internally Threaded Pop Rivets
