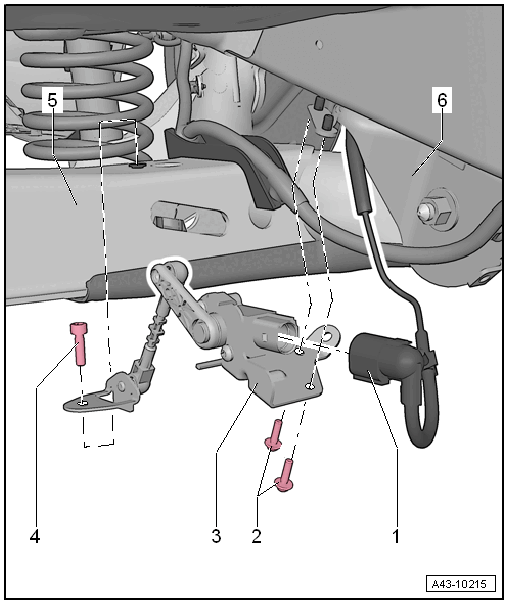

Left Rear Level Control System Sensor -G76-
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2017 Audi S3, 2017 Audi A3 Quattro, 2017 Audi A3, 2016 Audi S3, and 2016 Audi A3 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Connector
- Bolt
- 5 Nm
- Left Rear Level Control System Sensor -G76-
- Removing and Installing. Refer to Left Rear Level Control System Sensor -G76- .
- If the Left Rear Level Control System Sensor -G76- is remove and installed / replaced or the coupling rod from the level control system sensor is loosened.
- "Re-adapt control position". Refer to Vehicle Diagnostic Tester.
- On vehicles with lane assistance calibrate the driver assistance systems front camera. Refer to DRIVER ASSISTANCE SYSTEMS FRONT CAMERA, CALIBRATING .
- Evaluate the need for a basic setting of the headlamps. Refer to HEADLAMP, ADJUSTING .
- Bolt
- 8 Nm
- Axle Beam
- Bracket
