Engine, Supporting In Installation Position
Special tools and workshop equipment required
- Engine Support Bridge: 10-222A
- Engine Support - Bracket w/Spindle and hook: 10-222A/10
- Pry Lever: 80-200
- Engine Support - Supplement Kit - Adapter: T40093/6 from the Engine Support - Supplement Kit: T40093A
- Engine Support Plate: T40299
Procedure
-- Remove the air filter housing. Refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .

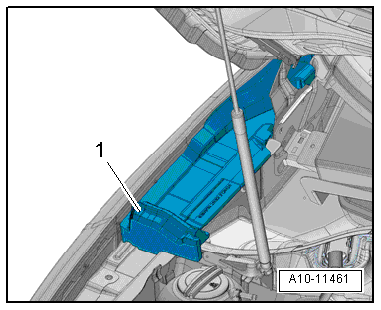

-- Unclip the left and right sealing piece -1- using the : 80-200 .
-- Remove the bolt -2- and nut -3- and move the right coolant pipe to the side.
-- Free up the wiring harness.

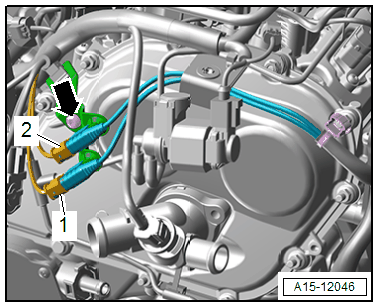

-- Remove the connectors -1 and 2- from the bracket.
-- Remove the bolt -arrow- and the bracket.

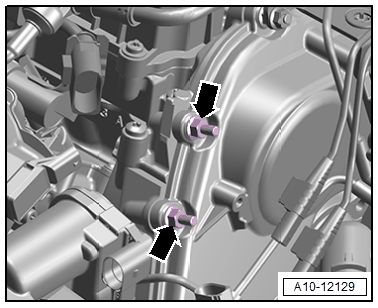

-- Remove the bolts -arrows-.

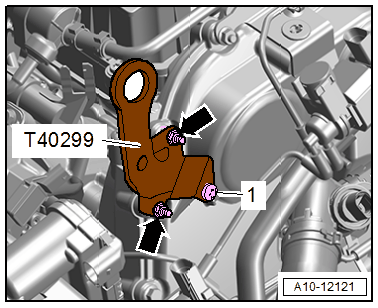

-- Tighten the : T40299 with the M5x25 bolts -arrows- and the M6x20 bolt -1- to 9 Nm.

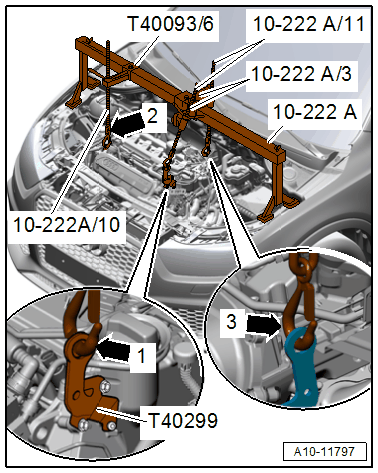

-- Position the : 10-222A on fender bolting edges.
-- Engage the carabiner hook from the right front : 10-222A/10 to the engine lifting eye -arrow 2-.
-- Engage the carabiner hook from the left rear : 10-222A/11 to the engine lifting eye -arrow 3-.
-- Engage the carabiner hooks at the left front : 10-222A/11 on the : T40299 -arrow 1-.
-- Pretension the engine/transmission assembly with all the spindles evenly, but do not lift it.
Assembling
Assemble in the reverse order of removal. Note the following:
-- Install the air filter housing. Refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .
Tightening Specifications
- Refer to OVERVIEW - SUBFRAME MOUNT
- Refer to OVERVIEW - TIMING CHAIN COVER .
- Refer to OVERVIEW - COOLANT PIPES .
