Engine Sound Generator Control Module Connector End View (J943, T12I)
Engine Sound Generator Control Module Connector End View (J943, T12I)

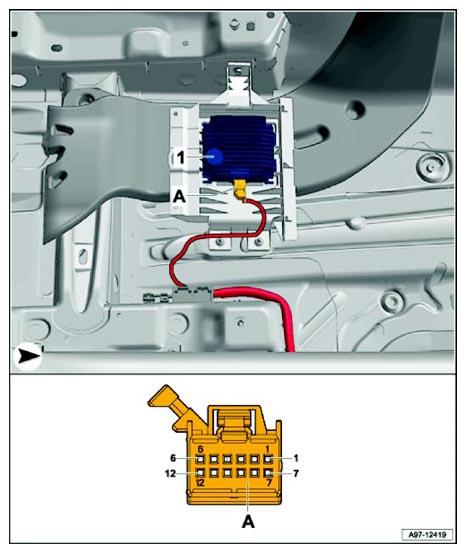

Fig 1: Engine Sound Generator Control Module Connector End View (J943, T12I)
Courtesy of AUDI OF AMERICA, LLC
1
Engine Sound Generator Control Module -J943-
A
12-Pin Connector -T12I-, black
