Electronic Steering Column Lock Control Module Connector End View (J764, T16G)

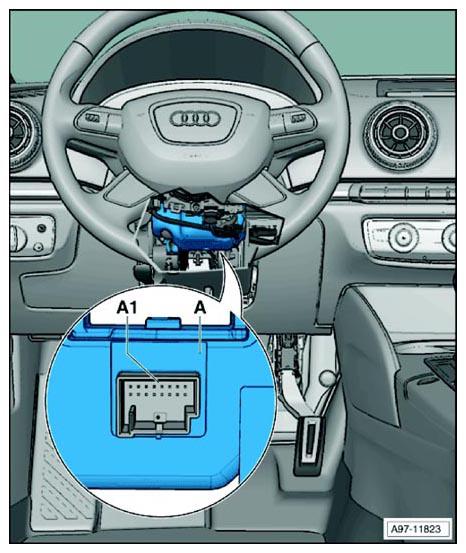

Fig 1: Electronic Steering Column Lock Control Module Connector End View (J764, T16g)
G10360243Courtesy of AUDI OF AMERICA, LLC
A Electronic Steering Column Lock Control Module -J764-
A1 16-Pin Connector -T16g-, black
