Battery Monitoring Control Module Connector End View (J367, T2FK)
Battery Monitoring Control Module Connector End View (J367, T2FK)

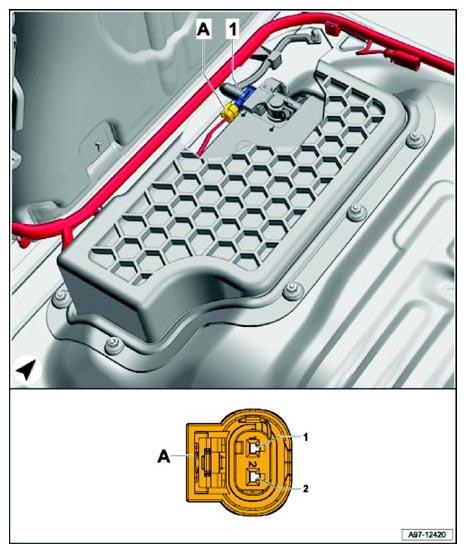

Fig 1: Battery Monitoring Control Module Connector End View (J367, T2fk)
Courtesy of AUDI OF AMERICA, LLC
1
Battery Monitoring Control Module -J367-
A
Double Connector -T2fk-, black
