A/C Compressor Control Module Connector End View (J842, P3, T8S)

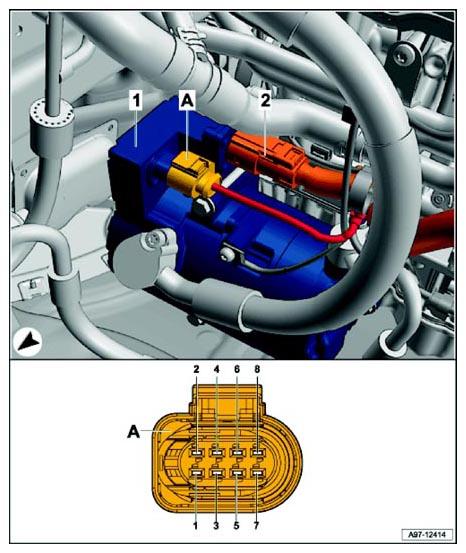

Fig 1: A/C Compressor Control Module Connector End View (J842, P3, T8s)

Courtesy of AUDI OF AMERICA, LLC

1	A/C Compressor Control Module -J842-
2	Electrical A/C Compressor High Voltage Cable -P3-
A	8-Pin Connector -T8s-, black
