Ignition Coils, Removing And Installing: Removing

-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .

Market-Specific for North America:

Courtesy of AUDI OF AMERICA, LLC

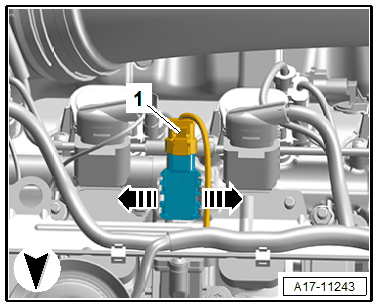

-- Disconnect the connector -1-.

Continuation for All Vehicles:

Courtesy of AUDI OF AMERICA, LLC

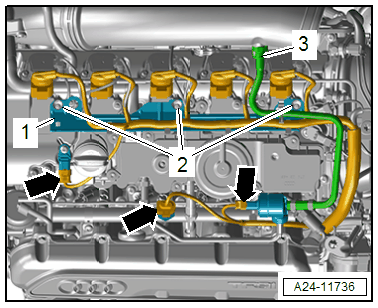

-- Disconnect the connector -left arrow-.

-- Free up the wiring harness.

-- Press the release buttons on both sides and free up the hose -3- for the crankcase ventilation and disconnect from the air duct pipe.

-- Remove the nuts -2- and move the bracket -1- to the side.

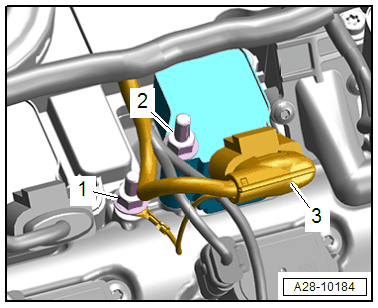

-- Disconnect the connector -3- and free up the wire.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the double bolt -2-.

TIP:

If the camshaft housing is removed in connection, remove the nut -1- and free up the ground wires. (There are different installation positions.)

-- Insert the Puller :T10530  in the ignition coil opening -1-.

-- Turn the knurled nut -2- clockwise in direction of -arrow- until the puller is clamped.

-- Remove the ignition coil carefully vertically in direction of -arrow- using the Puller :T10530  .
