Memory Seat/Steering Column Adjustment Control Module -J136-, Location

  1. 1  - Memory Seat/Steering Column Adjustment Control Module -J136-
  2. 1  - Passenger Memory Seat Control Module -J521-
  3. A  - 26-Pin Connector -T26B-, Black
  4. A  - 26-Pin Connector -T26C-, Black
  5. B  - 16-Pin Connector -T16K-, Black
  6. B  - 16-Pin Connector -T16L-, Black
  7. C  - 12-Pin Connector -T12N-, Black
  8. C  - 12-Pin Connector -T12O-, Black

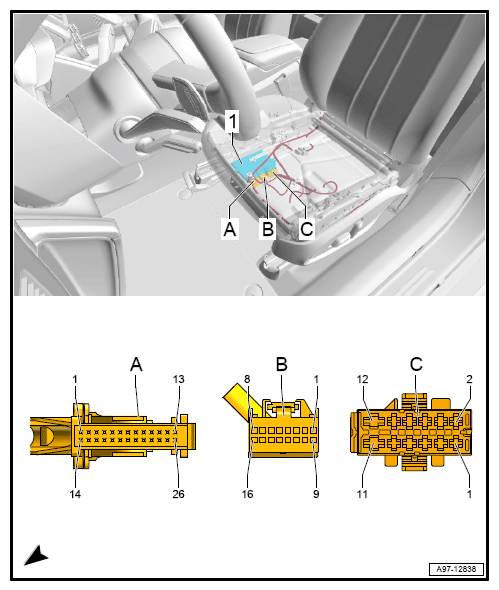

G12778088Courtesy of AUDI
