Central Locking

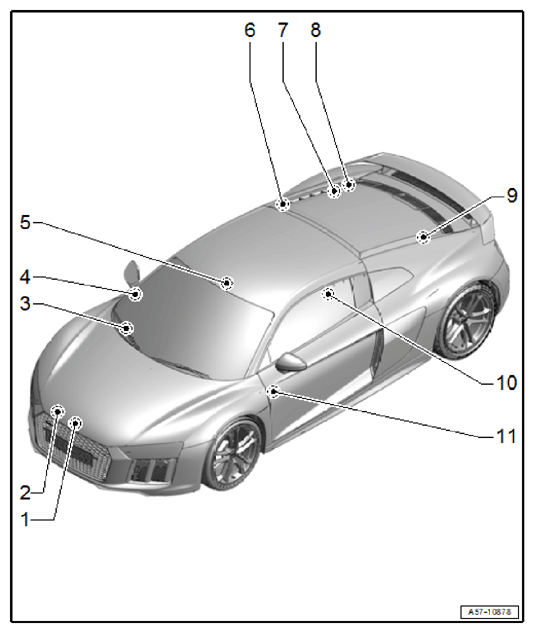

  1. 1  - Front Hood Contact Switch -F387-
    • Component Location In Front Latch
  2. 2  - Front Hood Release Motor -V394-
  3. 3  - Vehicle positioning system interface control module J843
  4. 4  - Front Passenger Door Control Module J387
  5. 5  - Anti-Theft Alarm System Sensor G578
  6. 6  - Fuel Tank Lid Unlock Motor -V155-
    • Installation Location In The Lid Lock
  7. 7  - Hood contact switch 2 -F329-
    • In The Right Rear Latch
  8. 8  - Rear lid unlock motor -V139-
  9. 9  - Front Hood Switch -F266-
    • In The Left Rear Latch
  10. 10  - Comfort System Central Control Module J393
  11. 11  - Driver Door Control Module J386
G11623462Courtesy of AUDI
