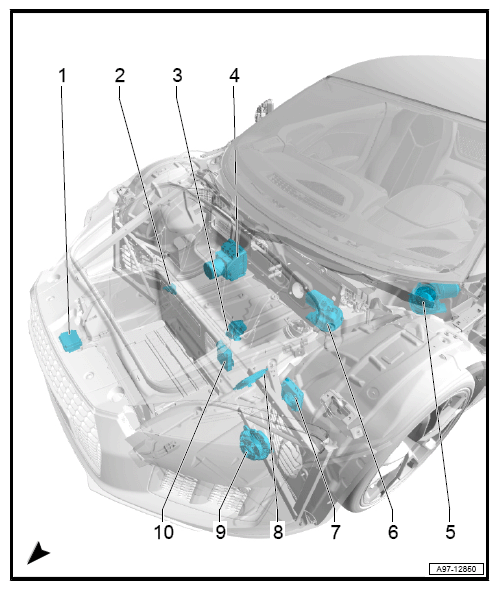

Vehicle Front Modules Overview

  1. → "GARAGE DOOR OPENER CONTROL MODULE J530 "
  2. → "BATTERY MONITORING CONTROL MODULE J367 "
  3. → "POWER STEERING CONTROL MODULE J500 "
  4. → "ABS CONTROL MODULE J104 "
  5. → "WIPER MOTOR CONTROL MODULE J400 "
  6. → "FRONT PASSENGER WINDSHIELD WIPER MOTOR CONTROL MODULE J584 "
  7. → "RIGHT LED HEADLAMP POWER OUTPUT STAGE 2 A28/LEFT LED HEADLAMP POWER OUTPUT STAGE 2 A32 "
  8. → "RIGHT LED HEADLAMP POWER OUTPUT STAGE 2 A28/LEFT LED HEADLAMP POWER OUTPUT STAGE 2 A32 "
  9. → "COOLANT FAN CONTROL MODULE J293/COOLANT FAN CONTROL (FC) CONTROL MODULE 2 J671 "
  10. → "ALL WHEEL DRIVE CONTROL MODULE J492 "
G12778063Courtesy of AUDI
