Seat Belt Microphone Control Module -J886-, Connector Views

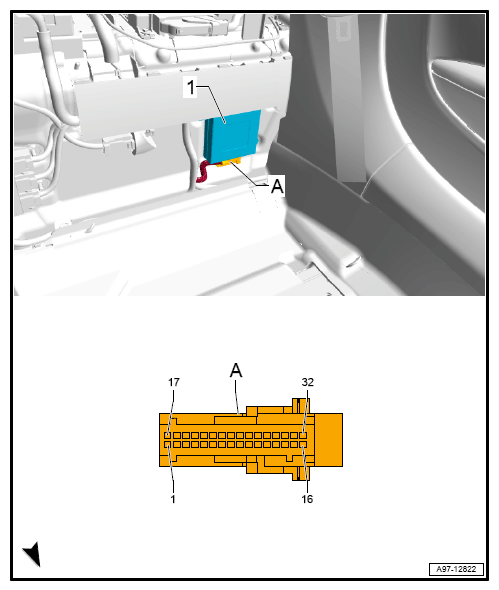

32-PIN CONNECTOR -T32G-
| T32G (A) | Designation |
|---|---|
| 1 | Telephone Microphone R38 in Microphone Unit (in front roof module) R164 |
| 2 | Driver microphone 1 R224 |
| 3 | Driver microphone 2 R225 |
| 4 | Driver microphone 3 R226 |
| 5 | Shielding Driver Microphone |
| 6 | Positive Supply Driver Microphone |
| 7 | Ground Supply Driver Microphone |
| 8 | Terminal 31, to 688 Ground Connection 2 (on Center Tunnel) |
| 9 | Control Module for Information Electronics 1 J794 |
| 10 | Control Module for Information Electronics 1 J794 |
| 11 | |
| 12 | |
| 13 | |
| 14 | Terminal 30, from Fuse Carrier 6 ST6 in Fuse Panel C SC |
| 15 | |
| 16 | CAN-Bus Instrument Cluster, High, to B708 Instrument cluster CAN bus high connection 1 (in main wiring harness) |
| 17 | Telephone Microphone R38 in Microphone Unit (in front roof module) R164 |
| 18 | Front passenger microphone 1 R227 |
| 19 | Front passenger microphone 2 R228 |
| 20 | Front passenger microphone 3 R229 |
| 21 | Shielding Front Passenger Microphone |
| 22 | Positive Supply Front Passenger Microphone |
| 23 | Ground Supply Front Passenger Microphone |
| 24 | |
| 25 | Control Module for Information Electronics 1 J794 |
| 26 | Control Module for Information Electronics 1 J794 |
| 27 | |
| 28 | |
| 29 | |
| 30 | |
| 31 | |
| 32 | CAN-Bus Instrument Cluster, Low, to B709 Instrument cluster CAN bus low connection 1 (in main wiring harness) |
