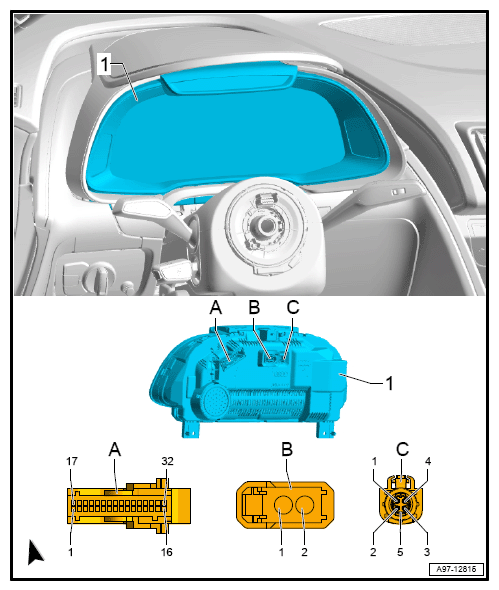

Instrument Cluster Control Module -J285-, Connector Views
32-PIN CONNECTOR -T32K-
| T32K (A) | Designation |
|---|---|
| 1 | Ring break diagnosis, to B444 OBD connection 1 (in main wiring harness) |
| 2 | |
| 3 | CAN-Bus Instrument Cluster, Low, to A205 CAN-Bus Low Instrument Cluster Connection (in instrument panel wiring harness) |
| 4 | CAN-Bus Instrument Cluster, High, to A204 CAN-Bus High Instrument Cluster Connection (in instrument panel wiring harness) |
| 5 | Ground Supply Fuel Level Sensor |
| 6 | Fuel Level Sensor G |
| 7 | Fuel Level Sensor 2 G169 |
| 8 | Instrument Cluster Operation Button E493 |
| 9 | Fuel Level Sensor 3 G237 |
| 10 | Fuel Level Sensor 4 G393 |
| 11 | |
| 12 | |
| 13 | |
| 14 | |
| 15 | |
| 16 | |
| 17 | |
| 18 | |
| 19 | |
| 20 | |
| 21 | |
| 22 | |
| 23 | |
| 24 | |
| 25 | CAN Bus, Control Module for Information Electronics 1 Low, to E147 Connection 1 (CAN Bus, Control Module for Information Electronics 1, Low) |
| 26 | CAN Bus, Control Module for Information Electronics 1 High, to E145 Connection 1 (CAN Bus, Control Module for Information Electronics 1, High) |
| 27 | |
| 28 | |
| 29 | |
| 30 | Terminal 31, to 664 Ground Connection (behind instrument panel, left) |
| 31 | |
| 32 | Terminal 30, from Fuse Carrier 3 ST3 in Fuse Panel C SC |
