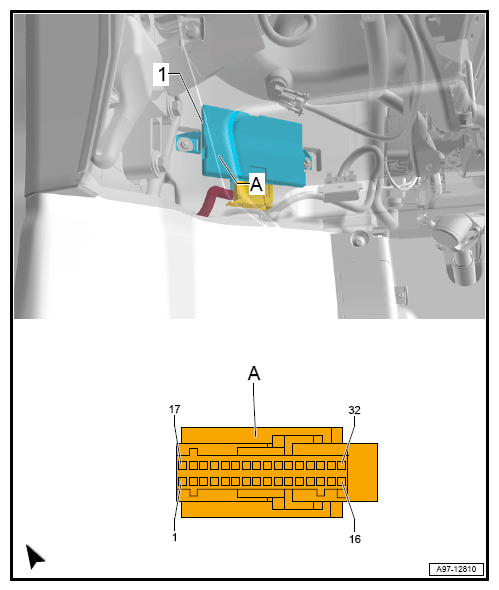

| 1 |
|
| 2 |
Extended System CAN-Bus Low, to B109 CAN-Bus Extended Low Connection 1 (in main wiring harness) /to Headlamp Range Control Module J431 |
| 3 |
CAN-Bus Diagnostic Low to Diagnostic connection U31 |
| 4 |
Comfort System CAN-Bus Low, to B406 Comfort System CAN-Bus Low Connection 1 (in main wiring harness) |
| 5 |
CAN-Bus powertrain, Low to B391 Powertrain CAN-Bus Low connection 2 (in main wiring harness) |
| 6 |
CAN-Bus Instrument Cluster, Low, to B709 Instrument cluster CAN bus low connection 1 (in main wiring harness) |
| 7 |
Flex Ray-Bus, to ABS control module J104 |
| 8 |
|
| 9 |
|
| 10 |
Flex Ray-Bus, to Sensor Electronics Control Module J849 |
| 11 |
|
| 12 |
|
| 13 |
Terminal 31, to 639 Ground Connection (on left A-pillar) |
| 14 |
Terminal 15, from Fuse Carrier 1ST1 in Fuse Panel C SC |
| 15 |
CAN-Bus suspension sensor Low, to B664 Suspension sensor CAN bus low connection (in main wiring harness) |
| 16 |
Terminal 30, from Fuse Carrier 3ST3 in Fuse Panel C SC |
| 17 |
LIN-Bus, to B528 LIN-Bus Connection 1 (in main wiring harness) |
| 18 |
Extended System CAN-Bus High, to B108 CAN-Bus Extended High Connection 1 (in main wiring harness) /to Headlamp Range Control Module J431 |
| 19 |
CAN-Bus Diagnostic High to Diagnostic connection U31 |
| 20 |
Comfort System CAN-Bus High, to B397 Comfort System CAN-Bus High Connection 1 (in main wiring harness) |
| 21 |
CAN-Bus powertrain, High to B384 Powertrain CAN-Bus High connection 2 (in main wiring harness) |
| 22 |
CAN-Bus Instrument Cluster, High, to B708 Instrument cluster CAN bus high connection 1 (in main wiring harness) |
| 23 |
Flex Ray-Bus, to ABS control module J104 |
| 24 |
|
| 25 |
|
| 26 |
Flex Ray-Bus, to Sensor Electronics Control Module J849 |
| 27 |
|
| 28 |
|
| 29 |
Terminal 31, to 639 Ground Connection (on left A-pillar) |
| 30 |
|
| 31 |
CAN-Bus suspension sensor High, to B663 Suspension sensor CAN bus high connection (in main wiring harness) |
| 32 |
|
