Active Steering Control Module -J792-, Connector Views

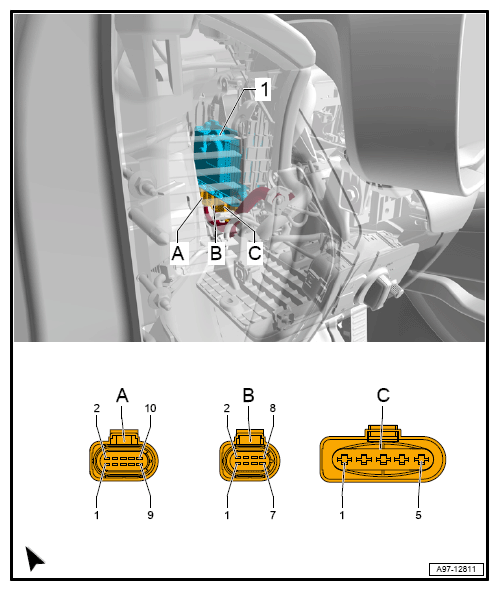

10-PIN CONNECTOR -T10I-/8-PIN CONNECTOR -T8N-/5-PIN CONNECTOR -T5F-
 Courtesy of AUDI
|
| T10I (A) |
Designation |
| 1 |
Active steering safety lock actuator F437 |
| 2 |
Active steering safety lock actuator F437 |
| 3 |
CAN-Bus suspension sensor Low, to B664 Suspension sensor CAN bus low connection (in main wiring harness) |
| 4 |
CAN-Bus suspension sensor High, to B663 Suspension sensor CAN bus high connection (in main wiring harness) |
| 5 |
|
| 6 |
|
| 7 |
|
| 8 |
|
| 9 |
|
| 10 |
|
| T8N (B) |
Designation |
| 1 |
|
| 2 |
Terminal 15, from Fuse Carrier 1 ST1 in Fuse Panel C SC |
| 3 |
Position sensor signal 4 |
| 4 |
Position sensor signal 3 |
| 5 |
Position sensor signal 2 |
| 6 |
Position sensor signal 1 |
| 7 |
Ground Supply for Position Sensors |
| 8 |
Positive supply for position sensors |
| T5F (C) |
Designation |
| 1 |
Active Steering Motor V477 |
| 2 |
Active Steering Motor V477 |
| 3 |
Active Steering Motor V477 |
| 4 |
Terminal 31, to 670 Ground Connection 2 (on left A-pillar) |
| 5 |
Terminal 30, from Fuse 3 (30) S206 on cover for main fuse carrier |
