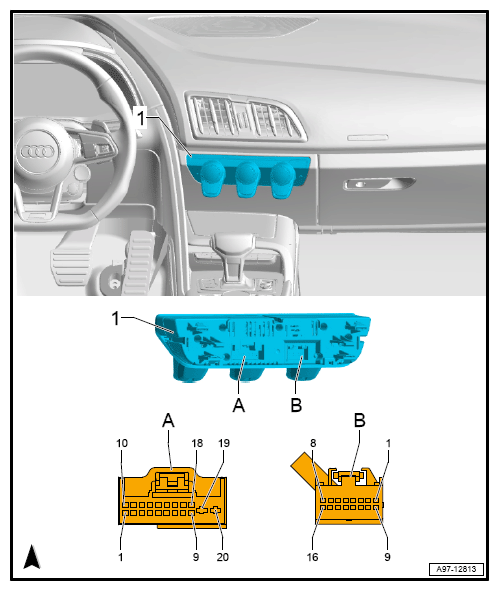

A/C Control Head (A/C, CLIMATRONIC) -E87-, Connector Views
20-PIN CONNECTOR -T20D-/16-PIN CONNECTOR -T16I-
 Courtesy of AUDI
|
| T20D (A) |
Designation |
| 1 |
Sunlight Photo Sensor G107 |
| 2 |
|
| 3 |
Sunlight Photo Sensor G107 |
| 4 |
|
| 5 |
CAN-Bus Instrument Cluster, High, to A204 CAN-Bus High Instrument Cluster Connection (in instrument panel wiring harness) |
| 6 |
CAN-Bus Instrument Cluster, Low, to A205 CAN-Bus Low Instrument Cluster Connection (in instrument panel wiring harness) |
| 7 |
|
| 8 |
|
| 9 |
Sunlight Photo Sensor G107 |
| 10 |
|
| 11 |
|
| 12 |
|
| 13 |
Left Front Upper Body Outlet Temperature Sensor G385 13 |
| 14 |
|
| 15 |
LIN-Bus, to Fresh air blower control module J126 |
| 16 |
|
| 17 |
Sunlight Photo Sensor G107 and Left Front Upper Body Outlet Temperature Sensor G385 |
| 18 |
|
| 19 |
Terminal 31, to 664 Ground Connection (behind instrument panel, left) |
| 20 |
Terminal 30, from Fuse Carrier 5 ST5 in Fuse Panel C SC |
| T16I (B) |
Designation |
| 1 |
LIN-Bus door motors, to Footwell door motor V261 |
| 2 |
Positive supply door motors, to L6 Connection 2 (in A/C wiring harness) |
| 3 |
Ground supply door motors, to L7 Connection 3 (in A/C wiring harness) |
| 4 |
|
| 5 |
Evaporator Vent Temperature Sensor G263 |
| 6 |
|
| 7 |
|
| 8 |
Footwell Outlet Temperature Sensor G192 |
| 9 |
|
| 10 |
|
| 11 |
|
| 12 |
Footwell Outlet Temperature Sensor G192 and Evaporator Vent Temperature Sensor G263 |
| 14 |
|
| 15 |
|
| 16 |
|
