Steering Column Electronic Systems Control Module -J527-, Connector Views

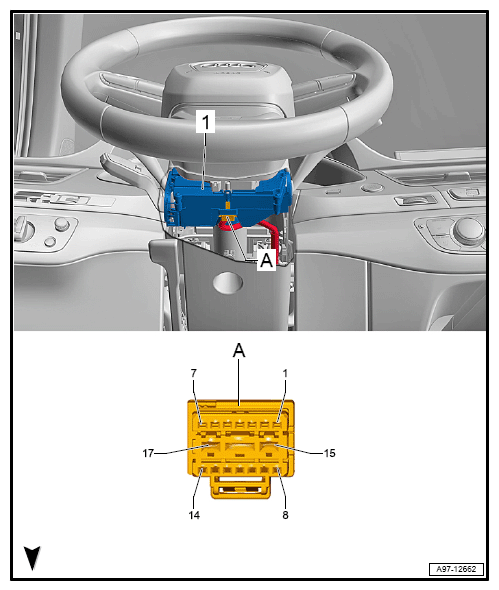

17-PIN CONNECTOR -T17D-
| T17D (A) | Designation |
|---|---|
| 1 | Terminal 30, from Fuse Carrier 4 ST4 in Fuse Panel C SC |
| 2 | Terminal 15, from Fuse Carrier 1 ST1 in Fuse Panel C SC |
| 3 | CAN-Bus suspension sensor High, to B663 Suspension sensor CAN bus high connection (in main wiring harness) |
| 4 | CAN-Bus suspension sensor Low, to B664 Suspension sensor CAN bus low connection (in main wiring harness) |
| 5 | CAN-Bus Instrument Cluster, Low, to B709 Instrument cluster CAN bus low connection 1 (in main wiring harness) |
| 6 | CAN-Bus Instrument Cluster, High, to B708 Instrument cluster CAN bus high connection 1 (in main wiring harness) |
| 7 | Engine Control Module (ECM) J623 |
| 8 | Comfort System Central Control Module J393 |
| 9 | Comfort System Central Control Module J393 |
| 10 | Comfort System Central Control Module J393 |
| 11 | Airbag Control Module J234 |
| 12 | Airbag Control Module J234 |
| 13 | |
| 14 | |
| 15 | Transmission Control Module 2 (TCM) J1006 |
| 16 | Transmission Control Module 2 (TCM) J1006 |
| 17 | Terminal 31, to 687 Ground Connection 1 (on Center Tunnel) |
