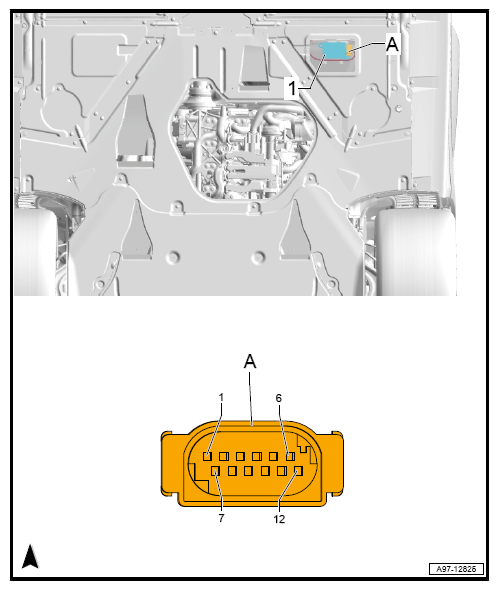

Tire Pressure Monitoring Control Module -J502-, Connector View
12-PIN CONNECTOR -T12E-
| T12E (A) | Designation |
|---|---|
| 1 | |
| 2 | |
| 3 | Ground Supply for Tire Pressure Monitoring Sensors G222/G223/G224/G225 |
| 4 | Right Front Tire Pressure Monitoring Sensor G223/Right Front Tire Pressure Monitoring Antenna R60 |
| 5 | Right Rear Tire Pressure Monitoring Sensor G225/Right Rear Tire Pressure Monitoring Antenna R62 |
| 6 | Terminal 30, from Fuse Carrier 1 ST1 in Fuse Panel D SD |
| 7 | CAN-Bus Instrument Cluster, High, to B708 Instrument cluster CAN bus high connection 1 (in main wiring harness) |
| 8 | CAN-Bus Instrument Cluster, Low, to B709 Instrument cluster CAN bus low connection 1 (in main wiring harness) |
| 9 | Left Front Tire Pressure Monitoring Sensor G222/Left Front Tire Pressure Monitoring Antenna R59 |
| 10 | Left Rear Tire Pressure Monitoring Sensor G224/Left Rear Tire Pressure Monitoring Antenna R61 |
| 11 | Data Wire to Tire Pressure Monitoring Sensors G222/G223/G224/G225 |
| 12 | Terminal 31, to 758 Ground Connection 3 (on Center Tunnel) |
