Fuel Tank Leak Detection Control Module -J909-, Connector Views

3-PIN CONNECTOR -T3S-

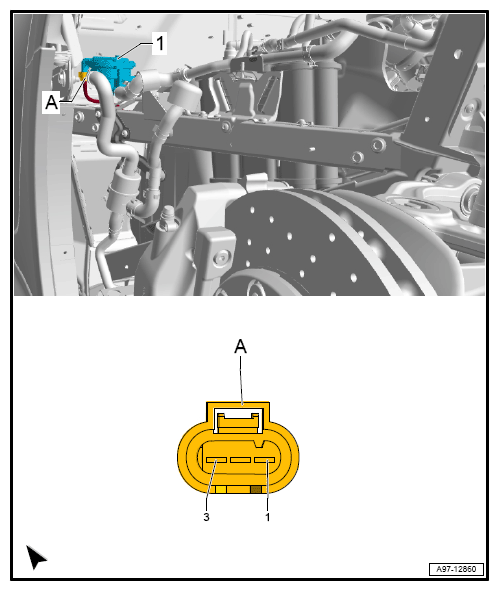

G12778174Courtesy of AUDI
T3S (A) Designation
1 Terminal 30, from Fuse Carrier 2 ST2 in Fuse Panel D SD
2 Engine Control Module (ECM) J623
3 Engine Control Module (ECM) J623
