Garage Door Opener Control Module -J530-, Connector Views

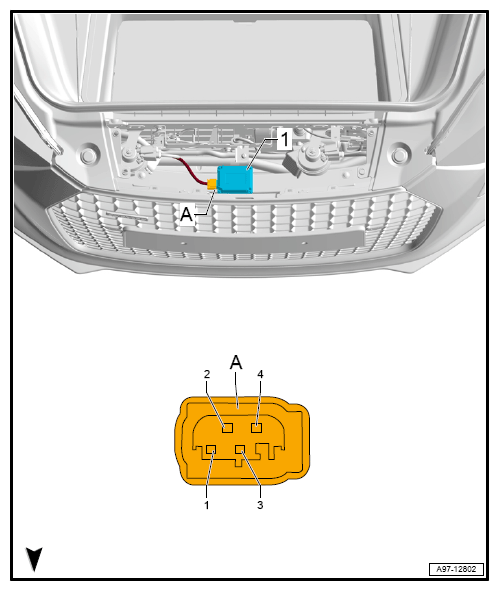

G12778076Courtesy of AUDI
T4U (A) Designation
1
2 LIN-Bus, from B549 LIN-Bus Connection 2 (in main wiring harness)
3 Terminal 31, to 685 Ground Connection 1 (on right front long member)
4 Terminal 30, from Fuse Carrier 1ST1 in Fuse Panel C SC
