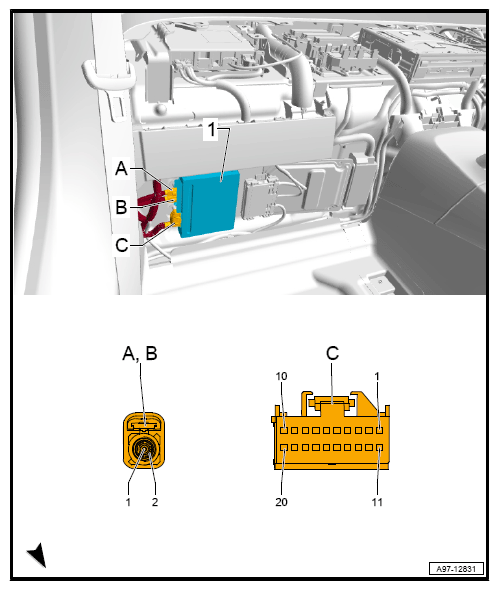

Rear View Camera System Control Module -J772-, Location

NOTE:
  • The Illustration Shows Installation For Models Through October 2016.
  • Component Location For Models From November 2016 Refer To Component Locations: Control Modules Vehicle Rear
  1. 1  - Rear View Camera System Control Module -J772-
  2. A  - Double Connector -T2BR-, Grey
  3. B  - Double Connector -T2BS-, Green
  4. C  - 20-Pin Connector -T20A-, Black
G12778139Courtesy of AUDI
