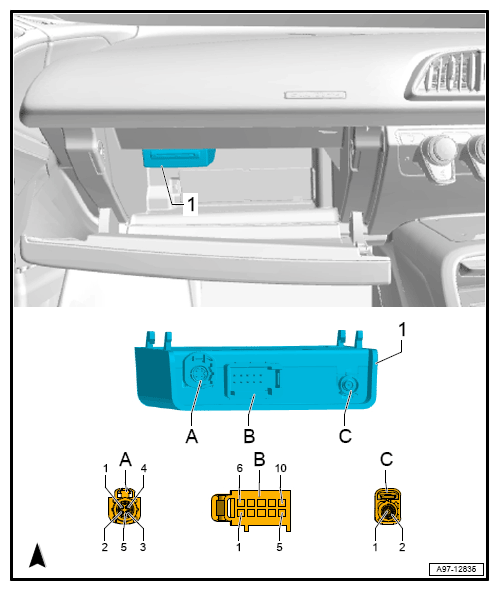

Chip Card Reader Control Module -J676-, Location

  1. 1  - Chip Card Reader Control Module -J676-
  2. A  - 5-Pin Connector -T5Z-, Brown
  3. B  - 10-Pin Connector -T10K-, Black
  4. C  - Double Connector -T2Fb-, Yellow
G12778133Courtesy of AUDI
