HEATER AND A/C UNIT IDENTIFICATION, MAHLE "Version 1"
At the start of production for this vehicle, only the heater and A/C units manufactured by "Mahle" "version 1" were installed. Other versions of heater and A/C units from the same or other manufacturers can also be installed later on this vehicle (for example, "Mahle" "version 2", introduction TBD).
- The manufacturer sticker -1- is visible after removing the Front A/C Display Control Head -E87- or Front Information Display Control Head 2 -J1060- through an opening in the instrument panel on the heater and A/C unit -2-. Refer to DISPLAY CONTROL HEAD, REMOVING AND INSTALLING
.

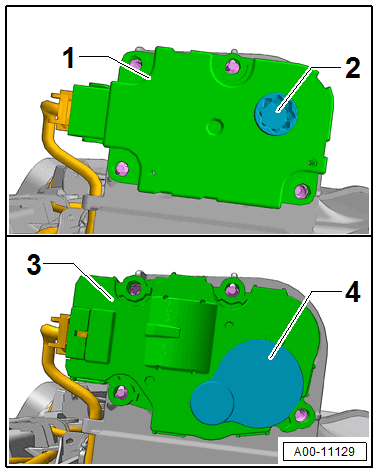

- Actuators -1- with open shaft -2- on the heater and A/C unit.
