Distance Regulation Control Modules -J428- / -J850-, Removing And Installing: Removing

-- Remove the air intake grille. Refer to AIR INTAKE GRILLE, REMOVING AND INSTALLING .

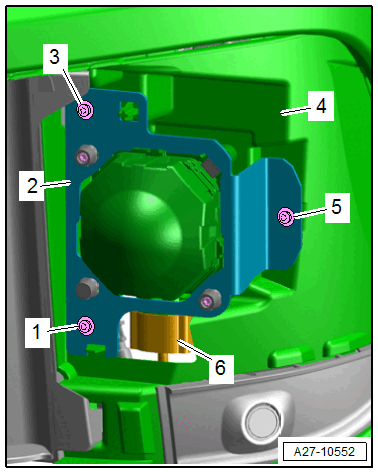

-- Remove the bolts -1, 3 and 5-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the retaining plate -2- with the distance regulation control module from the baseplate -4-.

-- Clean and dry the area around the control module connector.

-- Disconnect the connector -6-.
