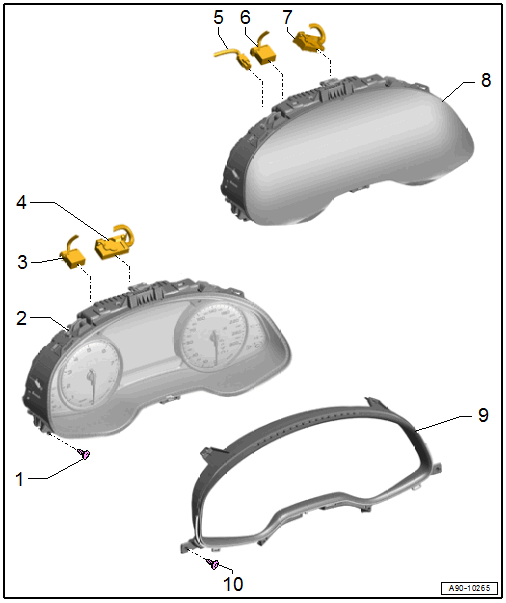

Overview - Instrument Cluster
- Bolt
- 3 Nm
- Quantity: 2
- Instrument Cluster - Low
- With Instrument Cluster Control Module -J285-
- Do not disassemble
- If an LED for the indicator lamps or instrument cluster illumination is faulty, the instrument cluster must be replaced
- Removing and installing. Refer to INSTRUMENT CLUSTER WITH Instrument Cluster Control Module -J285-, REMOVING AND INSTALLING, INSTRUMENT CLUSTER, LOW .
- Fiber Optic Cable Connector
- Seal with Fiber-Optic Repair Set - Connector Protective Caps: VAS6223/9
- Connector
- For the instrument cluster
- Antenna Wire
- Fiber Optic Cable Connector
- Seal with Fiber-Optic Repair Set - Connector Protective Caps: VAS6223/9
- Connector
- For the instrument cluster
- Instrument Cluster - High
- With Instrument Cluster Control Module -J285-
- Do not disassemble
- The instrument cluster must be replaced if there is a malfunction.
- Removing and installing. Refer to INSTRUMENT CLUSTER WITH Instrument Cluster Control Module -J285-, REMOVING AND INSTALLING, INSTRUMENT CLUSTER, HIGH .
- Instrument Cluster Trim
- Removing and installing. Refer to INSTRUMENT CLUSTER TRIM, REMOVING AND INSTALLING .
- Bolt
- Quantity: 2
- Tightening specification. Refer to OVERVIEW - INSTRUMENT PANEL .
