Left/Right Front Treble Speaker 2 -R220- / -R221-, Removing And Installing: Removing

-- Turn off the ignition and all electrical equipment and remove the ignition key.

-- Remove the A-pillar trim panel. Refer to A-PILLAR TRIM PANEL, REMOVING AND INSTALLING .

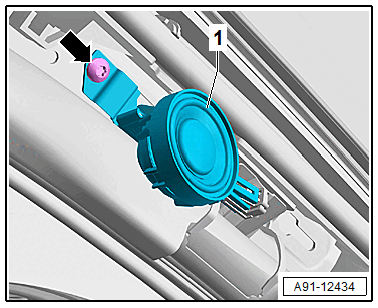

-- Release and disconnect the connector from the Left Front Treble Speaker 2 -R220- -1-.

GWWA91-12434Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -arrow-.

-- Remove the Left Front Treble Speaker 2 -R220- -1-.
