Left And Right Front Bass Speaker -R21- / -R23-, Removing And Installing, 9VS/8RF: Removing

-- Turn off the ignition and all electrical equipment and remove the ignition key.

-- Remove the front door trim panel. Refer to FRONT DOOR TRIM PANEL, REMOVING AND INSTALLING .

-- Release and disconnect the connector -3- from the Left Front Bass Speaker -R21- -2-.

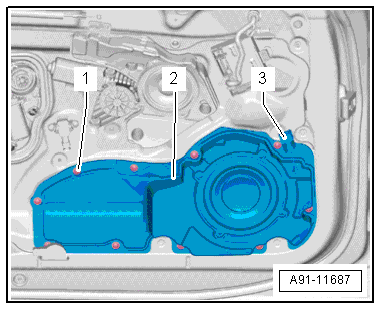

Fig 1: Disconnecting Connector -3- From Left Front Bass Speaker -R21- -2-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the 10 screws -1-.

-- Remove the Left Front Bass Speaker -R21- -2-.
