Digital Sound System Control Module -J525-, REMOVING AND INSTALLING, 9VS, "SQ7" 7-SEATER ONLY: Removing

-- Turn off the ignition and all electrical equipment and remove the ignition key.

-- Remove the luggage compartment floor.

-- Remove the right luggage compartment side trim panel. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .

-- Release and disconnect the connectors -3- from the Digital Sound System Control Module -J525- -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Insert the Fiber-Optic Repair Set - Connector Protective Caps :VAS6223/9  -1- onto the MOST Bus connector -2-.

Fig 1: Fiber-Optic Cable Harness Connector And Protective Cap For Cable Connector VAS 6223/9

Courtesy of AUDI OF AMERICA, LLC

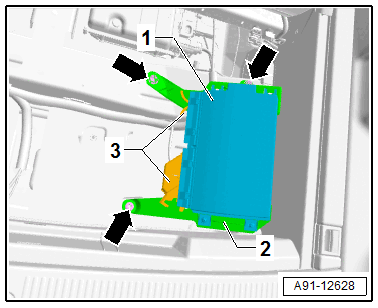

-- Remove the nuts -arrows- and remove the Digital Sound System Control Module -J525- -1- with the bracket -2-.

Courtesy of AUDI OF AMERICA, LLC

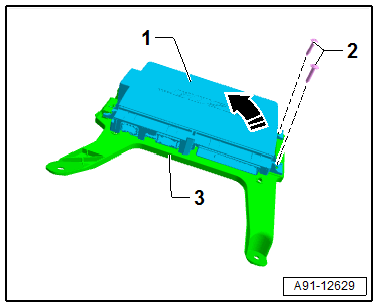

-- Remove the bolts -2- and pivot the Digital Sound System Control Module -J525- -1- in the direction of the -arrow- out of the bracket -3-.

Courtesy of AUDI OF AMERICA, LLC
