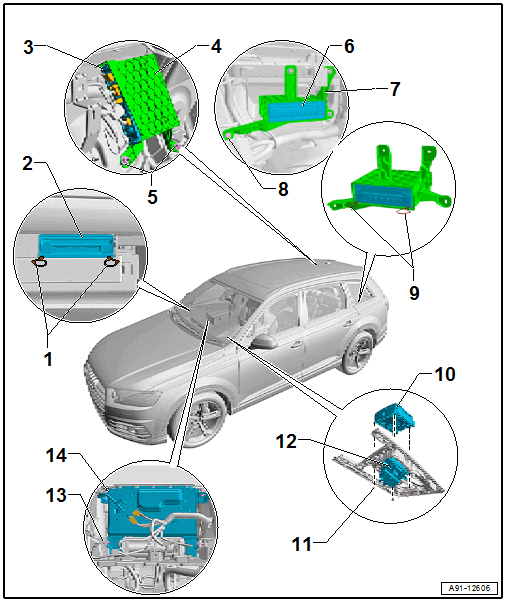

Overview - Infotainment System
- Radio Removal Tool :T10057
- Information Electronics Control Module 1 -J794-
- In the glove compartment
- Refer to Wiring Diagram
- Removing and Installing. Refer to Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING .
- TV Tuner -R78- (N/A for North America)
- In rear right of luggage compartment
- Refer to TV-ANLAGE
- Bracket
- Nut
- 3 Nm
- Quantity: 2
- DVD Changer -R161-
- In the luggage compartment on the left rear side
- Refer to DVD/CD CHANGER
- Bracket
- Nut
- 4 Nm
- Quantity: 4
- Radio Removal Tool:T10057
- Multimedia System Control Head -E380-
- In the center console
- Removing and Installing. Refer to Multimedia System Control Head -E380-, REMOVING AND INSTALLING .
- With Touchpad Control Module -J929-
- Touchpad Control Module - J929-, Replacing. Refer to Touchpad Control Module -J929-, REMOVING AND INSTALLING, UJ1 .
- Control Knob Cover, Replacing. Refer to CONTROL KNOB COVER, REPLACING .
- Refer to Wiring Diagram
- Screw
- 1 Nm
- Quantity: 4
- Driver Volume Control -E67-
- In the center console insert
- Removing and Installing. Refer to Driver Volume Control -E67-, REMOVING AND INSTALLING .
- Screw
- 3 Nm
- Quantity: 4
- Front Information Display Control Head -J685-
- Inside the center of the instrument panel
- Refer to Wiring Diagram
- Removing and Installing. Refer to INFOTAINMENT SYSTEM DISPLAY, REMOVING AND INSTALLING .
