Overview - Infotainment System Display And Mechanism

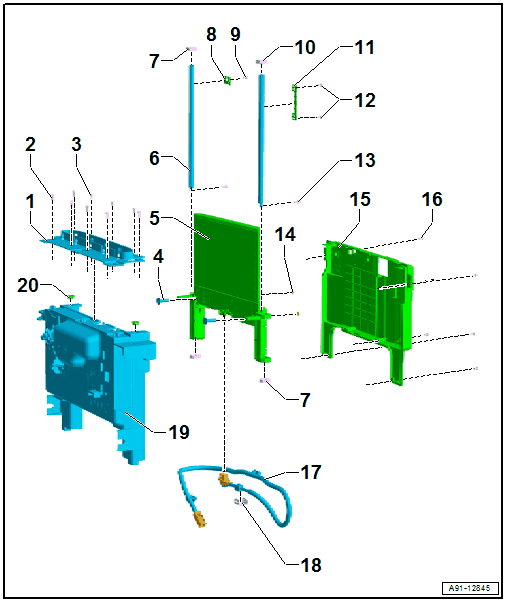

Fig 1: Exploded View Of Infotainment System Display And Mechanism

Courtesy of AUDI OF AMERICA, LLC

1. Collar
2. Bolt
   • 0.3 Nm
   • Quantity: 6
   • Securing collar
3. Expanding Rivet
   • Quantity: 3
   • Securing collar
4. Display Mounting Sleeve
   • Quantity: 2
   • Before installing the display with the sleeve, grease the axles on the balance lever of the mechanism. Refer to the appropriate service information for grease from the repair kit.
5. Display
6. Guide Rod
   • Quantity: 2
   • Slightly grease after installing in the area of the display bearing. Refer to the appropriate service information for the grease from the repair kit.
7. Rubber Buffer
   • For the guide rod
8. Spring
   • For the guide rod
9. Bolt
   • 0.5 Nm
   • For securing the spring
10. Tappered Rubber Bushing
    • For the guide rod
11. Spring
    • For the guide rod
12. Bolt
    • 0.5 Nm
    • Quantity: 2
    • For securing the spring
13. Bolt
    • 0.5 Nm
    • Quantity: 2
    • Guide rod retainer
14. Lock Washer
    • Quantity: 2
    • Replace after removing.
15. Rear Side Cover
16. Bolt
    • 0.3 Nm
    • Quantity: 5
17. Wiring Harness
18. Clip
    • Securing the wiring harness
    • Replace after removing.
19. Display Mechanism
20. Guide Sleeve
    • Before installing the guide rod grease the guide sleeve. Refer to the appropriate service information for grease from the repair kit.
