Component Location Overview - Start/Stop System

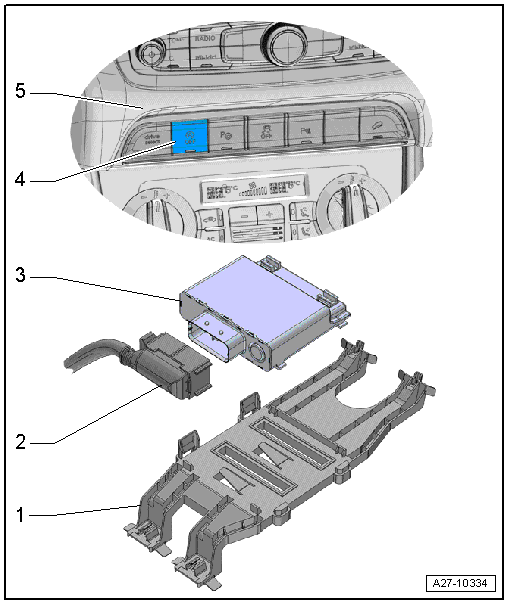

Fig 1: Start/Stop System Component Location

Courtesy of AUDI OF AMERICA, LLC

1. Bracket
   • For the Voltage Stabilizer -J532-
2. Connector
3. Voltage Stabilizer -J532-
   • Removing and installing. Refer to VOLTAGE STABILIZER, REMOVING AND INSTALLING .
4. Start/Stop Mode Button -E693-
   • Removing and installing. Refer to LOWER LEFT INSTRUMENT PANEL BUTTON UNIT, REMOVING AND INSTALLING .
5. Instrument Panel
