Access/Start Control Module Connector End View (J518, T32a)

Behind glove compartment.

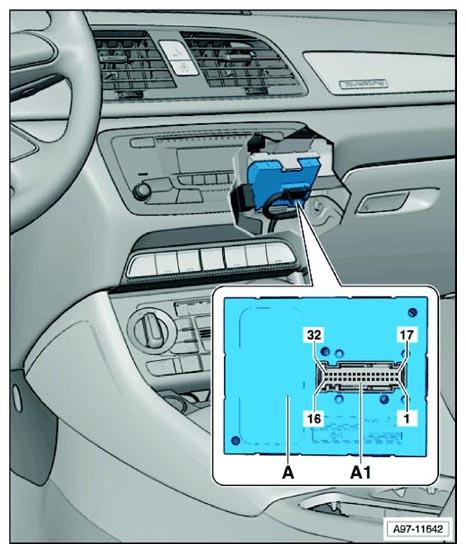

Fig 1: Access/Start Control Module Connector End View (J518, T32a)
G10360324Courtesy of AUDI OF AMERICA, LLC
A Access/Start Control Module -J518-
A1 32-Pin Connector -T32a-, blue
