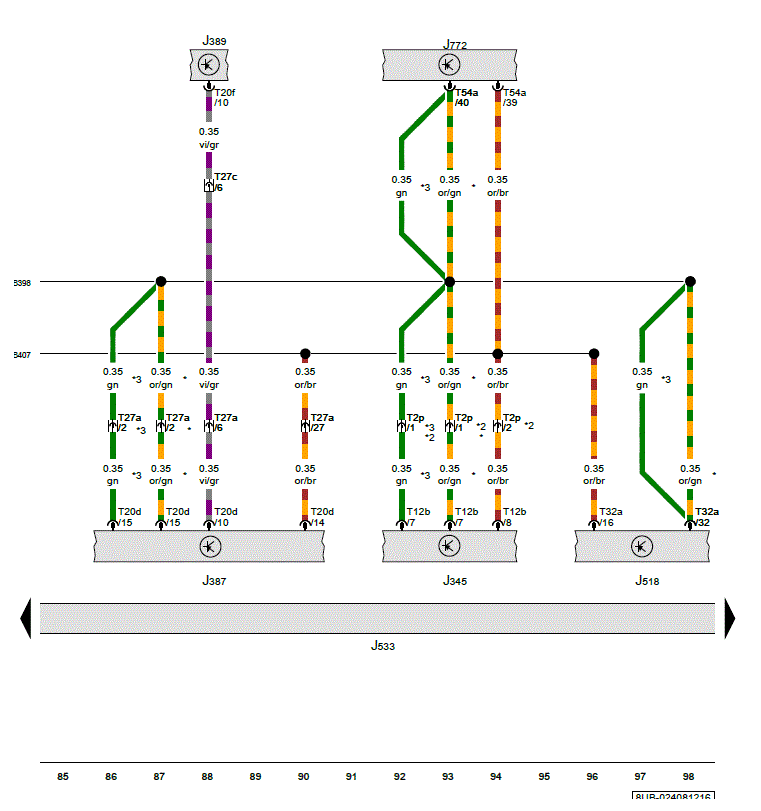

Comfort System Can Bus High Connection 2 (In Main Wiring Harness), Comfort System Can Bus Low Connection 2 (In Main Wiring Harness)
J345 Towing recognition control module
J387 Front passenger door control module
J389 Right rear door control module
J518 Access/start authorization control module
J533 Data bus on board diagnostic interface
J772 Rearview camera system control module
T2p 2-pin connector
T12b 12-pin connector
T20d 20-pin connector
T20f 20-pin connector
T27a 27-pin connector, on the right A-pillar
T27c 27-pin connector, on the right B-pillar
T32a 32-pin connector
T54a 54-pin connector
(B398) Comfort system CAN bus high connection 2 (in main wiring harness)
(B407) Comfort system CAN bus low connection 2 (in main wiring harness)
* through October 2016
*2 Only for vehicles with trailer setup
*3 from November 2016
