Window Guide, Removing And Installing: Removing

-- Remove the front window frame trim panel. Refer to WINDOW FRAME TRIM, REMOVING AND INSTALLING .

-- Remove the door window. Refer to FRONT DOOR WINDOW, REMOVING AND INSTALLING .

-- Remove the mirror adjustment unit bracket. Refer to MIRROR ADJUSTING UNIT MOUNT, REMOVING AND INSTALLING .

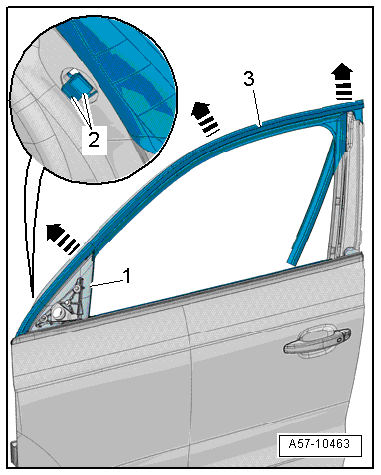

-- Remove the seal -1- for the mirror adjustment unit mount.

GWWA57-10463Courtesy of AUDI OF AMERICA, LLC

-- Release the retaining tabs -2- and remove the window guide -3- upward -arrows-.
