Vehicle, Lifting

CAUTION:

Using the hoist incorrectly can damage the vehicle.

Do not exceed the permitted load rating of the hoist.
Only lift the vehicle at the mounting points shown.
Position the mounting plate so that it is aligned centrally under the mounting points.
Maintain distance between the low-lying vehicle components and the hoist.

Procedure :

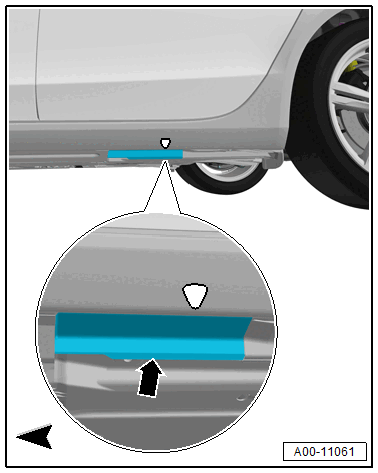

-- Front: Position the hoist mounting plate on the side sill mounting point -arrow-.

Fig 1: Mounting Point (Front)

Courtesy of AUDI OF AMERICA, LLC

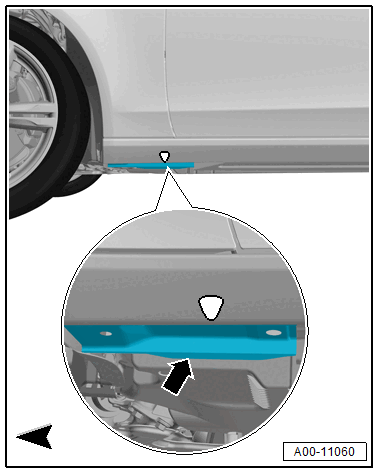

-- Rear: Position the hoist mounting plate on the side sill mounting point -arrow-.

Fig 2: Mounting Point (Rear)

Courtesy of AUDI OF AMERICA, LLC

NOTE:

The impressions on the side sill trim panel mark the positions of the mounting points.

Remove or position all mounting plates -2- so that the hoist lifting arms do not contact any vehicle trim panels.

Fig 3: Mounting Plate Position

Courtesy of AUDI OF AMERICA, LLC
