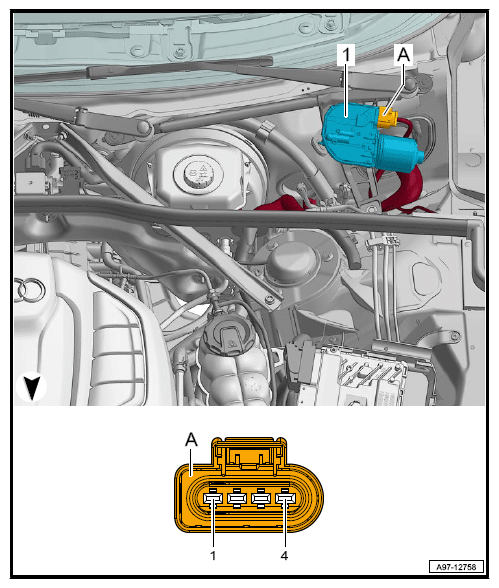

Wiper Motor Control Module -J400- Connector View, LHD
NOTE:
Illustration shows location for left-hand drive models. In right-hand drive models, installation is mirror-inverted in plenum. The pin arrangements are also different → WIPER MOTOR CONTROL MODULE -J400- CONNECTOR VIEW, RHD
4-Pin Connector -T4fr- (A)
| T4fr (A) | Designation |
|---|---|
| 1 | Data-Bus Wire (LIN-Bus) |
| 2 | |
| 3 | Terminal 31 |
| 4 | Terminal 30 |
