Power Steering Control Module -J500- Connector

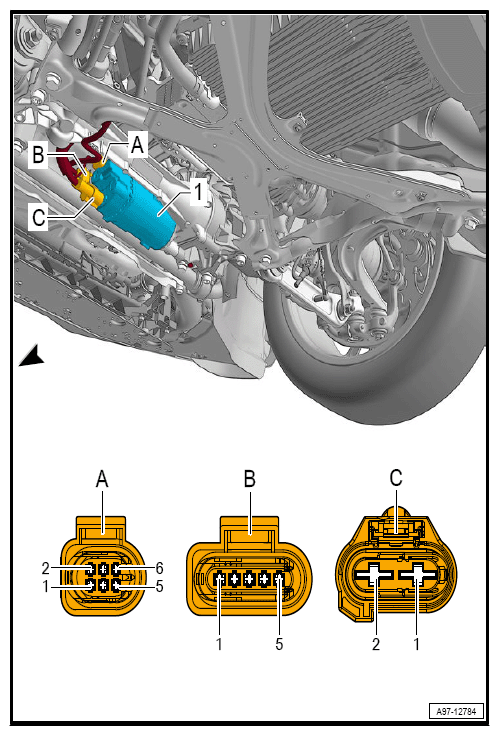

6-pin connector -T6f- (B)/Double connector -T2el- (C)

G12767474Courtesy of AUDI OF AMERICA, LLC
T6f (B) Designation
1 Terminal 15
2
3 Data-Bus Wire (FlexRay-Bus)
4
5 Data-Bus Wire (FlexRay-Bus)
6
T2el (C) Designation
1 Terminal 30
2 Terminal 31
