Engine Number/Engine Specifications

Engine Number

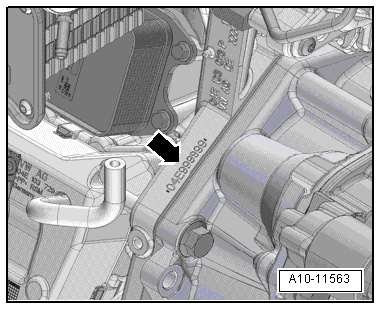

• The engine number ("engine codes" and "serial number") are located at the left on the engine/transmission joint -arrow-.

  Courtesy of AUDI OF AMERICA, LLC

• A sticker with the engine code and serial number is also on the upper toothed belt guard.
• Engine codes beginning with "C" are four letters long.
• The first three positions of the engine code stand for displacement and the mechanical engine structure. They are stamped in the cylinder block, including the serial number.
• The fourth position represents the engine output and torque and is dependent on the engine control module.
• The four digit engine code is on the type plate (market-specific), vehicle data label and engine control module.
• Component locations of the type plate (market-specific) and vehicle data label. Refer to GENERAL INFORMATION .

Engine Specifications

Refer to ENGINE OVERVIEW
