Overview - Adaptive Cruise Control, Version 2

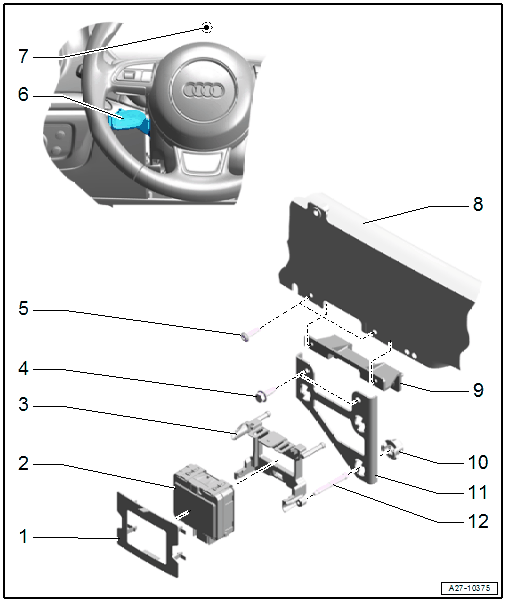

Fig 1: Adaptive Cruise Control Exploded View

Courtesy of AUDI OF AMERICA, LLC

1. Cover
2. Distance Regulation Control Module -J428-
   • Removing and installing. Refer to Distance Regulation Control Module -J428-, REMOVING AND INSTALLING .
3. Adapter Frame with Stud Bolt
   • For Control Module for Adaptive Cruise Control -J428-
   • Replace:
     • Through MY 2016. Refer to Distance Regulation Control Module -J428- ADAPTER FRAME, REPLACING, VERSION 2 THROUGH MY 2016 .
     • From MY 2017. Refer to Distance Regulation Control Module -J428- ADAPTER FRAME, REPLACING, VERSION 2 AND RS3 FROM MY 2017 .
4. Bolt
   • 8 Nm
   • Quantity: 2
5. Bolt
   • 5.5 Nm
   • Quantity: 2
6. Impact Member
7. Operating Lever for Adaptive Cruise Control
   • Common part with the steering column switch module. Cannot be replaced separately
   • Removing and installing. Refer to STEERING COLUMN COMBINATION SWITCH, REMOVING AND INSTALLING .
8. Instrument Cluster
   • With Instrument Cluster Control Module -J285-
9. Bracket
   • There are different versions. Refer to the Parts Information.
10. Quick Release Fastener
    • Always replace
    • Quantity: 3
11. Retaining Plate
    • There are different versions. Refer to the Parts Information.
      • Removing and Installing, through MY 2016. Refer to BASEPLATE FOR Distance Regulation Control Module -J428-, REMOVING AND INSTALLING, VERSION 2 THROUGH MY 2016 .
      • Removing and Installing, from MY 2017. Refer to BASEPLATE FOR Distance Regulation Control Module -J428-, REMOVING AND INSTALLING, VERSION 2 AND RS3 FROM MY 2017 .
12. Stud Bolt
    • Pay attention to the adjustment dimension for vehicles through MY 2016. Refer to Installing - Measure the dimension -a- at all stud bolts using the :VAS6335 and correct if necessary. .
    • Pay attention to the adjustment dimension for vehicles from MY 2017. Refer to Installing - Measure the dimension -a- at the upper stud bolt using the :VAS6335 and correct if necessary. .
    • Quantity: 2
