Overview - Adaptive Cruise Control, Version 1

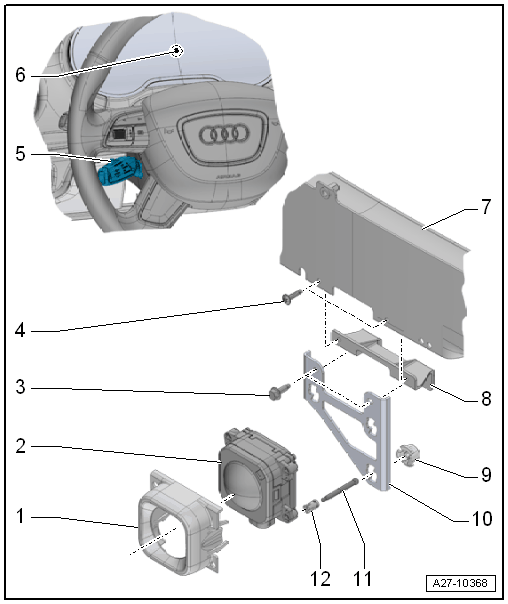

Fig 1: Adaptive Cruise Control Exploded View

Courtesy of AUDI OF AMERICA, LLC

1. Cover
2. Distance Regulation Control Module -J428-
   • Removing and installing. Refer to Distance Regulation Control Module -J428-, REMOVING AND INSTALLING .
3. Bolt
   • 8 Nm
   • Quantity: 2
4. Bolt
   • 5.5 Nm
   • Quantity: 2
5. Operating Lever for Adaptive Cruise Control
   • Common part with the steering column switch module. Cannot be replaced separately
   • Removing and installing. Refer to STEERING COLUMN COMBINATION SWITCH, REMOVING AND INSTALLING .
6. Instrument Cluster
   • With Instrument Cluster Control Module -J285-
7. Impact Member
8. Bracket
9. Quick Release Fastener
   • Always replace
   • Quantity: 3
10. Retaining Plate
    • Removing and installing. Refer to Distance Regulation Control Module -J428- RETAINING PLATE, REMOVING AND INSTALLING, VERSION 1 .
11. Stud Bolt
    • Note the adjustment dimension. Refer to Installing - Measure the dimension -a- at all stud bolts using the :VAS6335 and correct if necessary.
    • Quantity: 3
12. Clip
    • Must always be replaced if the stud bolt -Item  11- was removed.
    • Replacing. Refer to CLIP ON Distance Regulation Control Module -J428-, REPLACING, VERSION 1 .
