Component Location Overview - Adaptive Cruise Control (Acc), Through My 2016

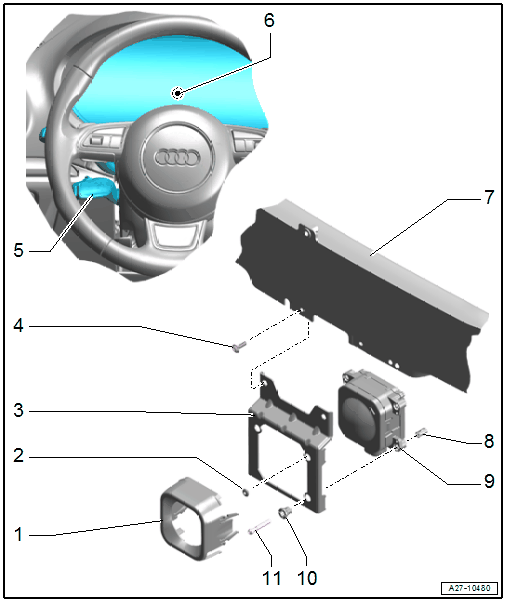

Fig 1: Adaptive Cruise Control Exploded View

Courtesy of AUDI OF AMERICA, LLC

1. Cover
2. Plug
3. Retaining Plate
   • Removing and installing. Refer to BASEPLATE FOR Distance Regulation Control Module -J428-, REMOVING AND INSTALLING, RS3 THROUGH MY 2016 .
4. Screw
   • 5.5 Nm
   • Quantity: 2
5. Operating Lever for Adaptive Cruise Control
   • Common part with the steering column switch module. Cannot be replaced separately
   • Removing and installing. Refer to STEERING COLUMN COMBINATION SWITCH, REMOVING AND INSTALLING .
6. Instrument Cluster
   • With Instrument Cluster Control Module -J285-
7. Impact Member
8. Clip
   • Must only be replaced when the same distance regulation control module is reinstalled
   • Replacing. Refer to CLIP ON Control Module for Adaptive Cruise Control -J428-, REPLACING, RS3 THROUGH MY 2016 .
   • Quantity: 3
9. Distance Regulation Control Module -J428-
   • Removing and installing. Refer to Distance Regulation Control Module -J428-, REMOVING AND INSTALLING .
10. Clip
    • Quantity: 3
11. Stud Bolt
    • Note the adjustment dimension. Refer to Installing - Measure the dimension -a- at all stud bolts using the digital caliper :VAS6335 and correct if necessary.
    • Quantity: 3
