Special Tools

Special tools and workshop equipment required

• Wedge Set: T10383
  Fig 1: Identifying Wedge Set

  Courtesy of AUDI OF AMERICA, LLC
• Hook Tool: T40207
  Fig 2: Identifying Hook Tool T40207

  Courtesy of AUDI OF AMERICA, LLC
• Window Slot Seal Tool: T40219
  Fig 3: Identifying Window Slot Seal Tool T40219

  Courtesy of AUDI OF AMERICA, LLC
• Adhesive Strip Remover: VAS6349
  Fig 4: Adhesive Remover VAS 6349

  Courtesy of AUDI OF AMERICA, LLC
• Roller: 3356
  Fig 5: Application Roller 3356

  Courtesy of AUDI OF AMERICA, LLC
• Gauge - Gap Adjustment: 3371

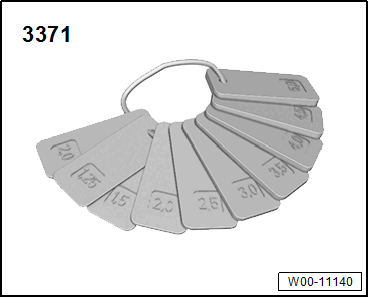

  Fig 6: Gap Adjustment Gauge (3371)

  Courtesy of AUDI OF AMERICA, LLC
• Door Adjustment Template: T40038/17
• Cleaning Solution: D 009 401 04
